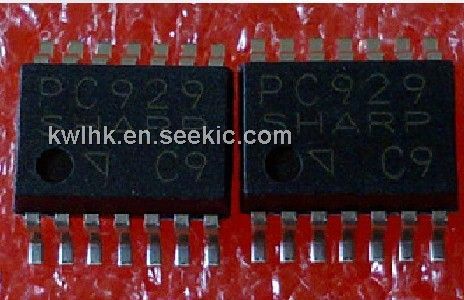

Product Summary

The PC929 is an inverter-driving MOS-FET/IGBT.

Parametrics

PC929 absolute maximum ratings: (1)Total power dissipation Ptot: 550 mW; (2)Isolation voltage Viso: 4 000 Vrms; (3)Operating temperature Topr: - 25to + 80 °C; (4)Storage temperature Tstg: - 55to + 125 °C; (5)Soldering temperature Tsol: 260 (for 10 sec)°C; (6)Output Overcurrent detecting voltage VC: VCC V; (7)Output Overcurrent detecting current IC: 30 mA; (8)Output Error signal output voltage VFS: VCC V; (9)Output Error signal output current IFS: 20 mA; (10)Input Forward current IF: 20 mA; (11)Input Reverse voltage VR: 6 (Ta= 25°C)V.

Features

PC929 features: (1)Built-in IGBT shortcircuit protector circuit; (2)Built-in direct drive circuit for IGBT drive (Peak output current IO1P, IO2P : MAX. 0.4A); (3)High speed response (tPLH, tPHL : MAX. 0.5 ms); (4)High isolation voltage (Viso : 4000Vrms); (5)Half lead pin pitch (p=1.27 mm)package type; (6)Recognized by UL, file NO. E64380.

Diagrams

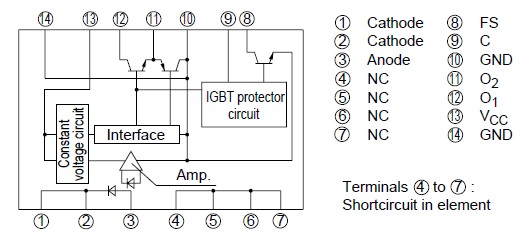

PC929 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

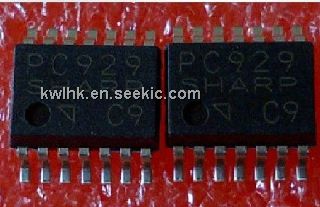

PC929
PC929


PHOTOCOUPLER OPIC 14-SMD

Data Sheet

Negotiable
PC929J00000F
PC929J00000F

Sharp Microelectronics

High Speed Optocouplers PC924L0NSZ0F w/ SC Protection

Data Sheet

0-655: $1.29
655-1000: $1.24
1000-5000: $1.20
PC929PYJ000F
PC929PYJ000F

Sharp Microelectronics

High Speed Optocouplers VDE Approved PC929

Data Sheet

0-1: $2.34
1-10: $1.87
10-100: $1.55
100-500: $1.36
500-1000: $1.21
